Vertical Track L-Bracket Support Kit Installation (Optional)

Vinyl Critter Catchers Omitted for Clarity.

Installing this Provided Kit is Recommended by Goff's, but is Optional.

The purpose of this Kit is to Anchor the Vertical Tracks to the Floor to completely inhibit their ability to move left and right.

What you will Receive:

L-Bracket

1/4-20 Machine Screw

1/4in ID Flat Washer

1/4-20 Serrated Flange Nut

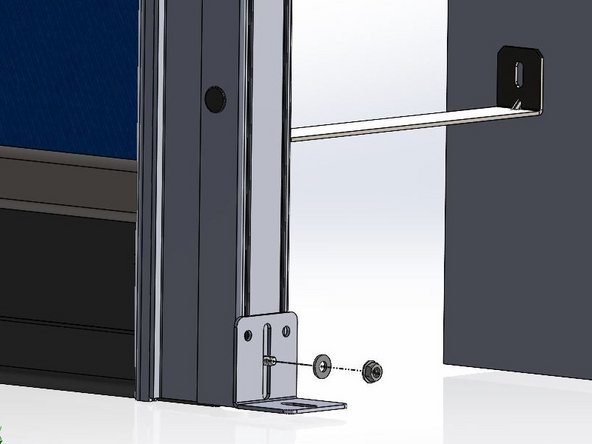

Set the Bracket in place at the bottom of the Vertical Track and make a mark on the Track for a through hole.

Drill a clearance hole for the 1/4-20 Machine Screw.

Insert the Machine Screw from the Inside the Vertical Track so that the Threaded end sticks out, allowing the Bracket, Washer, and Flange Nut to be installed on the outside of the Track.

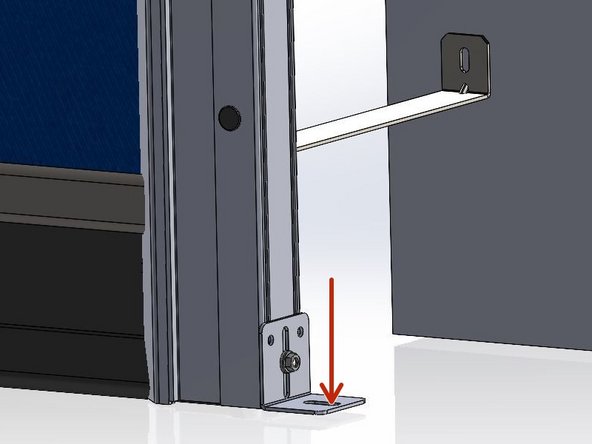

Drill directly through the bottom hole on the bracket into the floor.

Fasteners for anchoring into the floor/ground are not provided.

Please use best judgment to decide the appropriate fastener for your specific floor material.

Repeat on opposite Vertical Track Assembly.

Completely tighten all fasteners to ensure Vertical Tracks are wobble-free.
