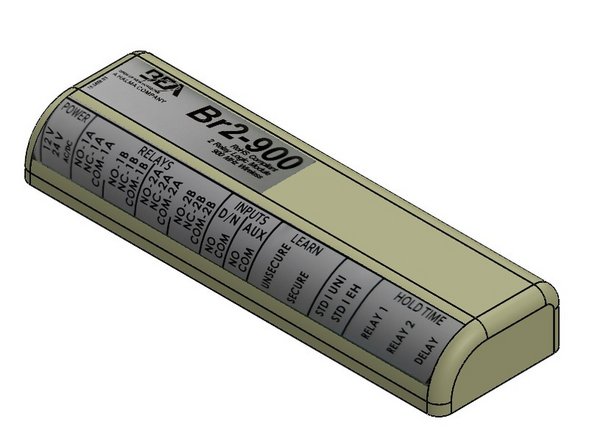

RF Receiver, BEA BR2-900

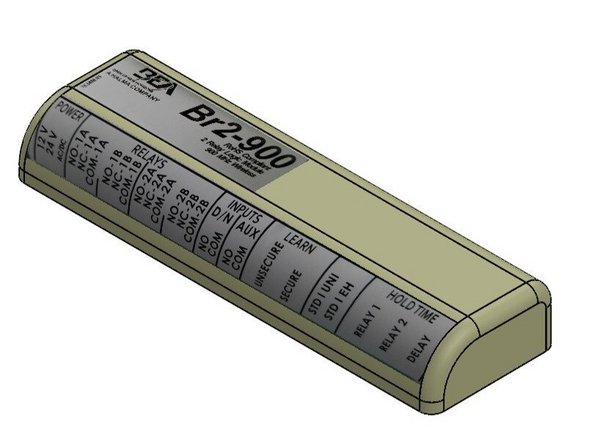

The BR2-900 wireless receiver from BEA can handle up to 75 wireless remotes, and communicates at a frequency of 908-918MHz.

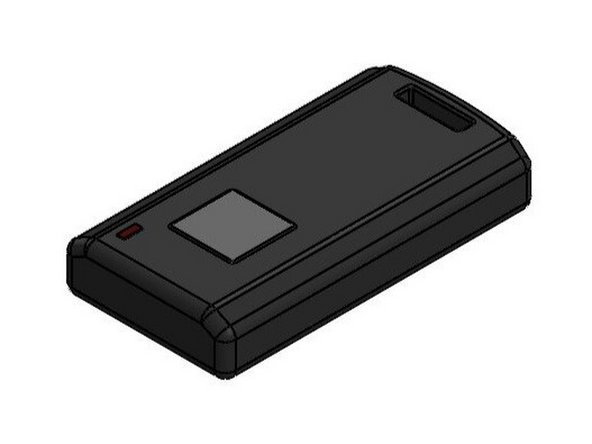

This receiver works best with wireless remotes from the 900MHz family from BEA.

This receiver is compatible with Goff's door equipped with the ICS3, RCS2, or GMC controls.

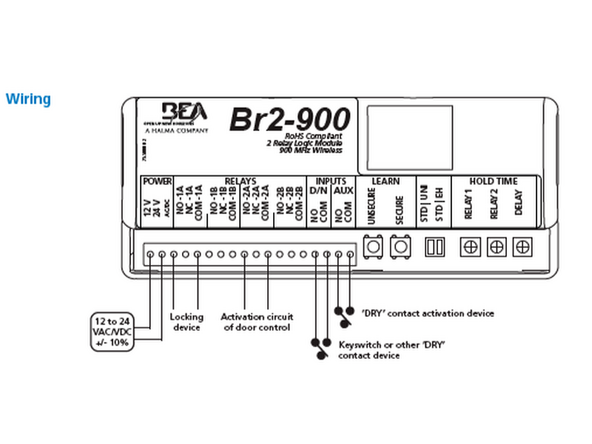

The wiring scheme for the receiver is as follows:

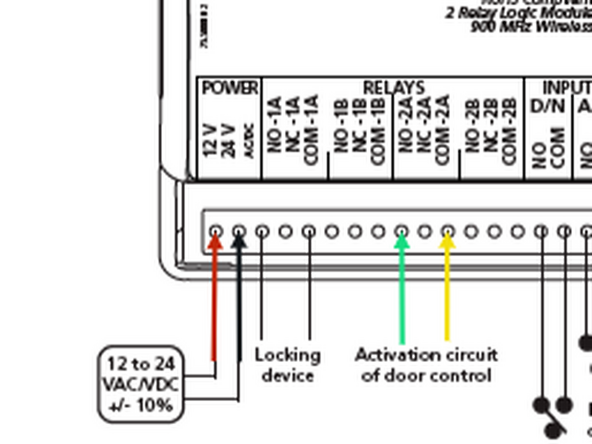

Red Wire - Terminal 1 (24VDC)

Black Wire - Terminal 2 (0VDC)

Green Wire - Terminal 9 (NO - 2A)

White Wire - Terminal 11 (COM - 2A)

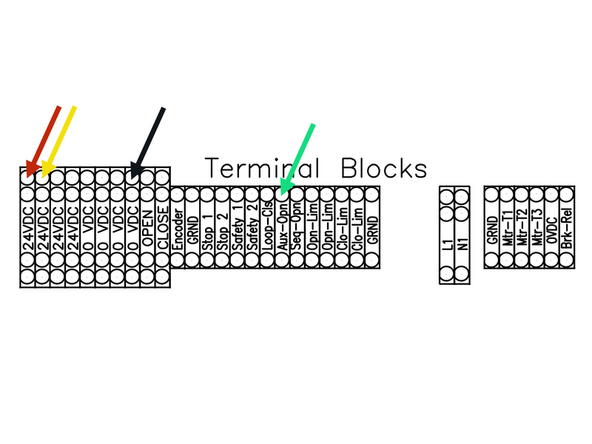

The wiring scheme inside the control panel is as follows:

Red Wire - 24VDC

Black Wire - 0VDC

Green Wire - AUX OPN

White Wire - 24VDC

To program remotes:

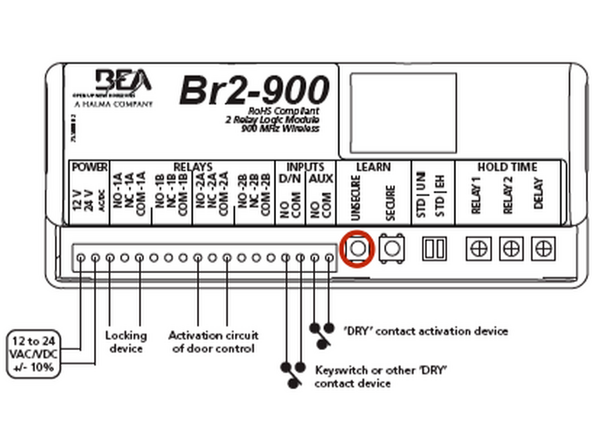

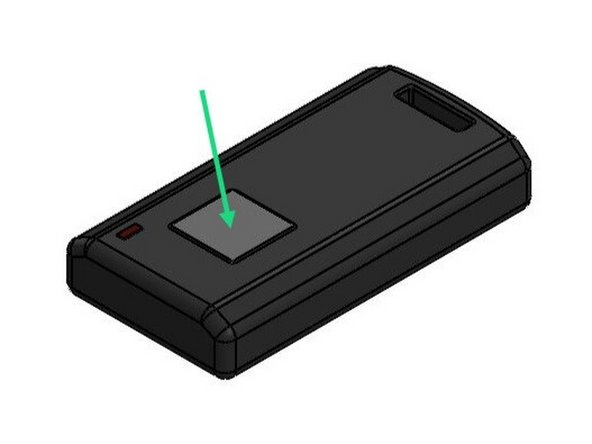

Press the "UNSECURE" learn button on the BR2-900 receiver.

The red LED on the receiver will illuminate.

Press the desired button on the remote 2 times.

The white and blue LEDs on the receiver will illuminate.

The door should now operate in sequential mode, so that each press of the learned button will cycle through the following sequence:

Open, Stop, Close, Stop.... Etc.
