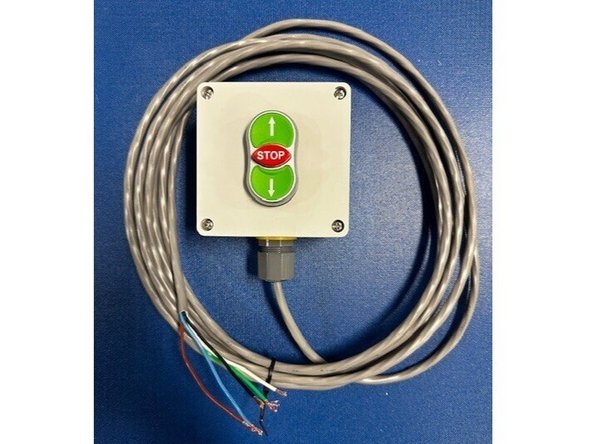

NEMA 4X Push Button Station w/ ICS3 Control Panel - PN #36170

Written By: Trent Borgardt
  • Comments: 0
  • Favorites: 0

Difficulty

Very easy

Steps

1

Time Required

00:05:00

Sections

1

Flags

0

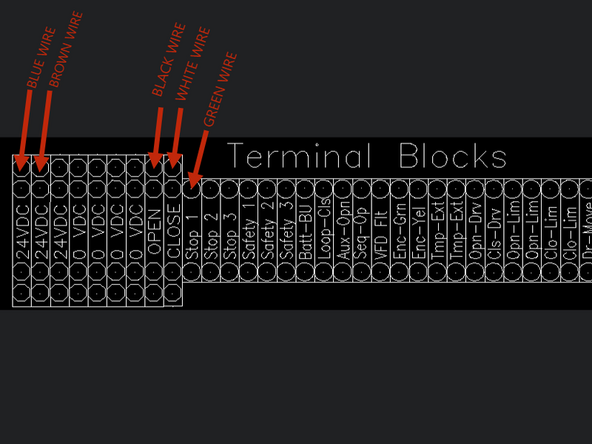

  1. Here is the wiring schema for inside the ICS3 Control Panel:

    • Here is the wiring schema for inside the ICS3 Control Panel:

    • Blue Wire - 24VDC

    • Brown Wire - 24VDC (Stop Common / Return)

    • Black Wire - Open

    • White Wire - Close

    • Green Wire - Stop 1

    • Remove the factory jumper wire between 24VDC and Stop 1.
