Miller Edge Light Curtain Wiring for ICS Control Panel

Written By: Todd Lucas (and one other contributor)
  • Comments: 0
  • Favorites: 0

Difficulty

Moderate

Steps

3

Time Required

Suggest a time??

Sections

1

Flags

0

    • RED – 24VDC

    • BLACK – 0VDC

    • REMOVE FACTORY (X4 TO X4.1) JUMPER TO INSTALL SAFETY DEVICE

    • RED – 24VDC

    • BLACK – 0VDC

    • BROWN – X4.1

    • ORANGE – X4

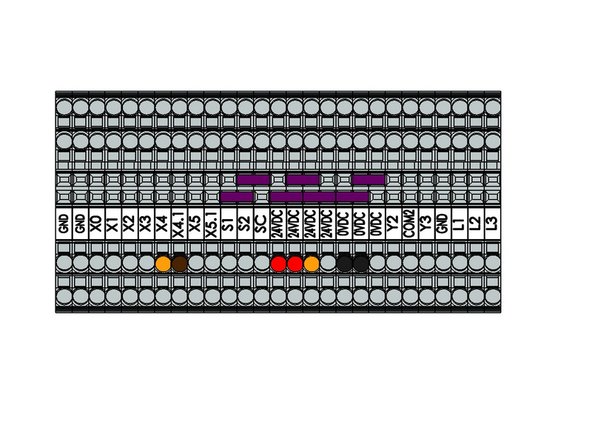

  3. REMOVE FACTORY (24VDC TO X4.1) JUMPER TO INSTALL SECONDARY DEVICE(S).

    • REMOVE FACTORY (24VDC TO X4.1) JUMPER TO INSTALL SECONDARY DEVICE(S).

    • YELLOW WIRES – NOT USED

    • 0 VDC - BOTH BLACK WIRES

    • 24 VDC - (1) ORANGE WIRE

    • 24 VDC - BOTH RED WIRES

    • X4 - (1) ORANGE WIRE

    • X4.1 - BOTH BROWN WIRES

Finish Line
