v1.1

Minor Versionm

by Trent Borgardt

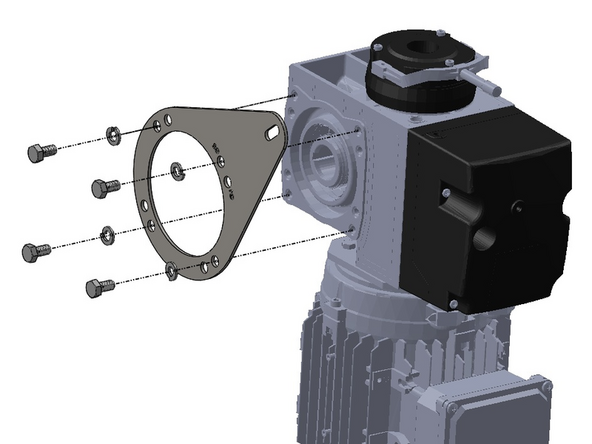

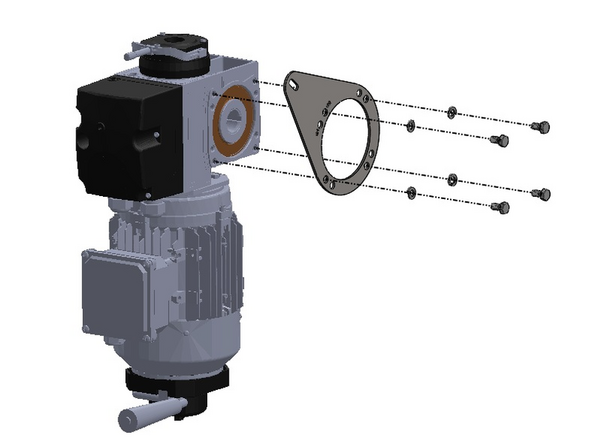

  1. (4) M8-1.25 x 16mm Hex Bolts
    • (4) M8-1.25 x 16mm Hex Bolts

    • (4) 5/16 Split-Lock Washers

    • (1) Motor Mount Anti-Torque Bracket

  2. Note the Orientation of the Bracket in Relation to the Motor. The Bracket has 2 Hole-Patterns Corresponding to G1 and G2 Doors. This ensures the proper Alignment when Installing the Motor Assembly onto a G1 or G2 Door. For a G2 or Wash Guard Plus Door, Use the G2 Hole Pattern, and for a G1 or Model 2000 Door, use the G1 Hole Pattern.

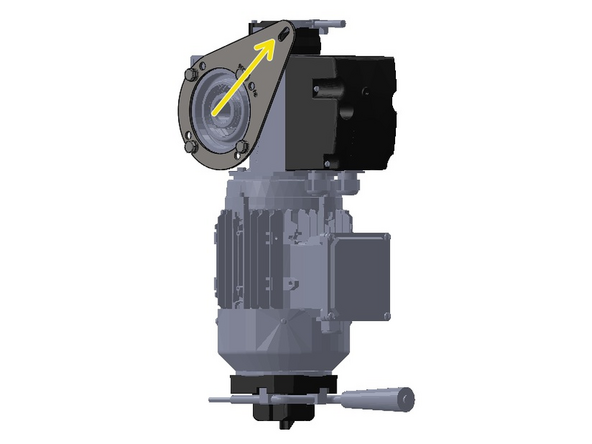

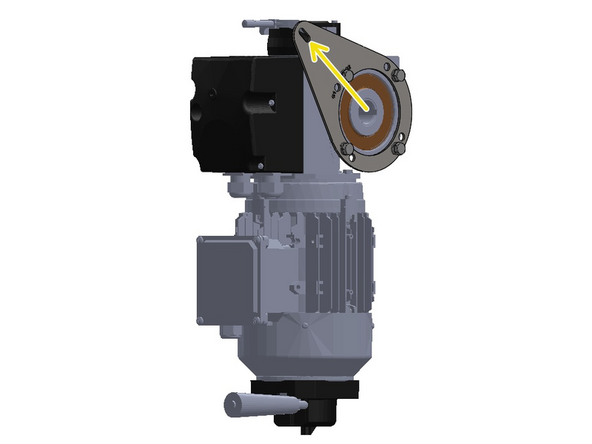

    • Note the Orientation of the Bracket in Relation to the Motor.

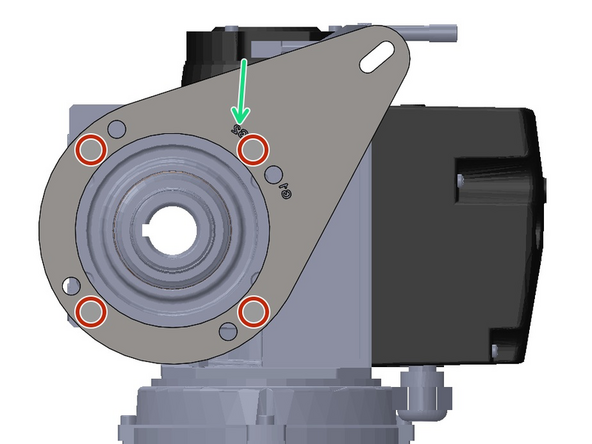

    • The Bracket has 2 Hole-Patterns Corresponding to G1 and G2 Doors. This ensures the proper Alignment when Installing the Motor Assembly onto a G1 or G2 Door.

    • For a G2 or Wash Guard Plus Door, Use the G2 Hole Pattern, and for a G1 or Model 2000 Door, use the G1 Hole Pattern.

    • On a LH Drive, G2 Door, the Letters will Read Normally/Forward when the Bracket is Mounted onto the Motor.

    • Place the Bracket up on the Motor with the proper Hole Alignment.

    • Place the Lock Washer onto the Screw and Fasten the Bracket onto the Motor.

  3. Note the Orientation of the Bracket in Relation to the Motor. The Bracket has 2 Hole-Patterns Corresponding to G1 and G2 Doors. This ensures the proper Alignment when Installing the Motor Assembly onto a G1 or G2 Door. For a G2 or Wash Guard Plus Door, Use the G2 Hole Pattern, and for a G1 or Model 2000 Door, use the G1 Hole Pattern.
    • Note the Orientation of the Bracket in Relation to the Motor.

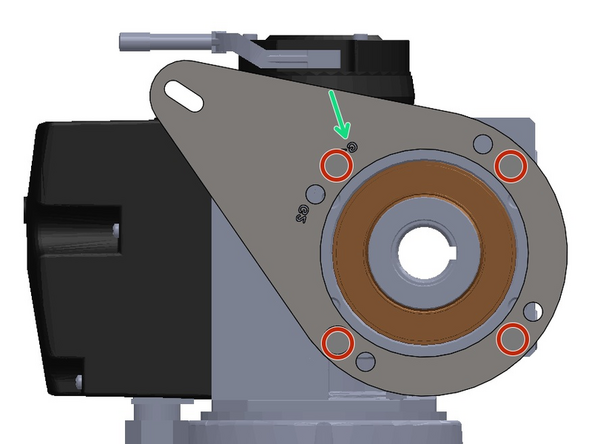

    • The Bracket has 2 Hole-Patterns Corresponding to G1 and G2 Doors. This ensures the proper Alignment when Installing the Motor Assembly onto a G1 or G2 Door.

    • For a G2 or Wash Guard Plus Door, Use the G2 Hole Pattern, and for a G1 or Model 2000 Door, use the G1 Hole Pattern.

    • On a RH Drive G2 Door, the Letters will Read Backwards when the Bracket is Mounted onto the Motor.

    • Place the Bracket up on the Motor with the proper Hole Alignment.

    • Place the Lock Washer onto the Screw and Fasten the Bracket onto the Motor.

  4. Note the Orientation of the Bracket in Relation to the Motor. The Bracket has 2 Hole-Patterns Corresponding to G1 and G2 Doors. This ensures the proper Alignment when Installing the Motor Assembly onto a G1 or G2 Door. For a G2 or Wash Guard Plus Door, Use the G2 Hole Pattern, and for a G1 or Model 2000 Door, use the G1 Hole Pattern.
    • Note the Orientation of the Bracket in Relation to the Motor.

    • The Bracket has 2 Hole-Patterns Corresponding to G1 and G2 Doors. This ensures the proper Alignment when Installing the Motor Assembly onto a G1 or G2 Door.

    • For a G2 or Wash Guard Plus Door, Use the G2 Hole Pattern, and for a G1 or Model 2000 Door, use the G1 Hole Pattern.

    • On a LH Drive G1 Door, the Letters will Read Backwards when the Bracket is Mounted onto the Motor.

    • Place the Bracket up on the Motor with the proper Hole Alignment.

    • Place the Lock Washer onto the Screw and Fasten the Bracket onto the Motor.

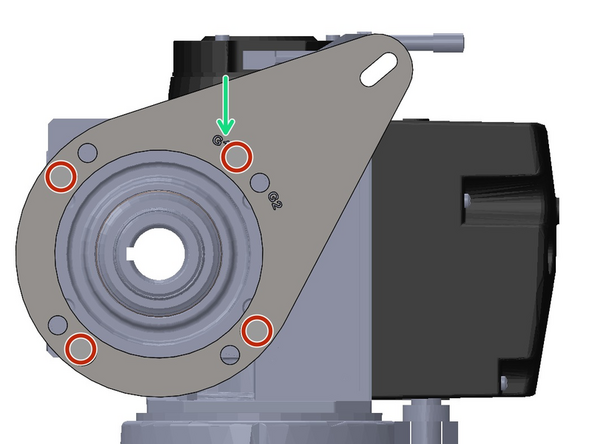

  5. Note the Orientation of the Bracket in Relation to the Motor. The Bracket has 2 Hole-Patterns Corresponding the G1 and G2 Doors. This ensures the proper Alignment when Installing the Motor Assembly onto a G1 or G2 Door. For a G2 or Wash Guard Plus Door, Use the G2 Hole Pattern, and for a G1 or Model 2000 Door, use the G1 Hole Pattern.
    • Note the Orientation of the Bracket in Relation to the Motor.

    • The Bracket has 2 Hole-Patterns Corresponding the G1 and G2 Doors. This ensures the proper Alignment when Installing the Motor Assembly onto a G1 or G2 Door.

    • For a G2 or Wash Guard Plus Door, Use the G2 Hole Pattern, and for a G1 or Model 2000 Door, use the G1 Hole Pattern.

    • On a RH Drive G1 Door, the Letters will Read Normally/Forward when the Bracket is Mounted onto the Motor.

    • Place the Bracket up on the Motor with the proper Hole Alignment.

    • Place the Lock Washer onto the Screw and Fasten the Bracket onto the Motor.

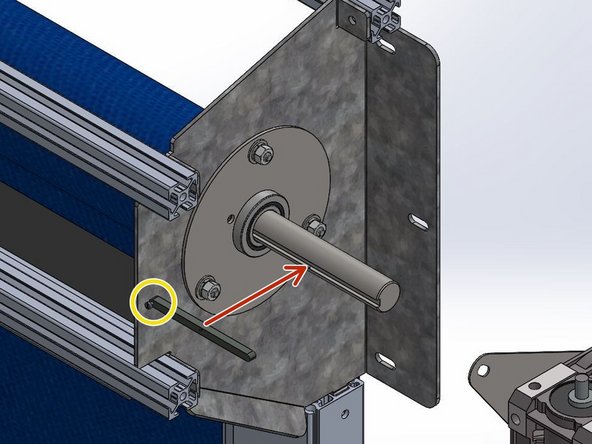

  6. Install the Machine Key onto the Drive Shaft with the Set Screw Oriented Towards the Header (Between Motor and Door). Install the Machine Key onto the Drive Shaft with the Set Screw Oriented Towards the Header (Between Motor and Door).

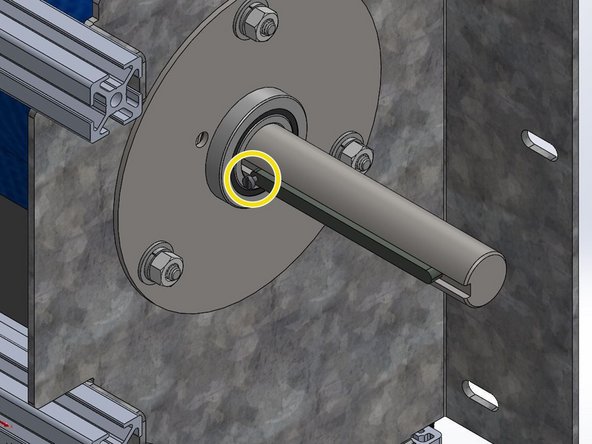

    • Install the Machine Key onto the Drive Shaft with the Set Screw Oriented Towards the Header (Between Motor and Door).

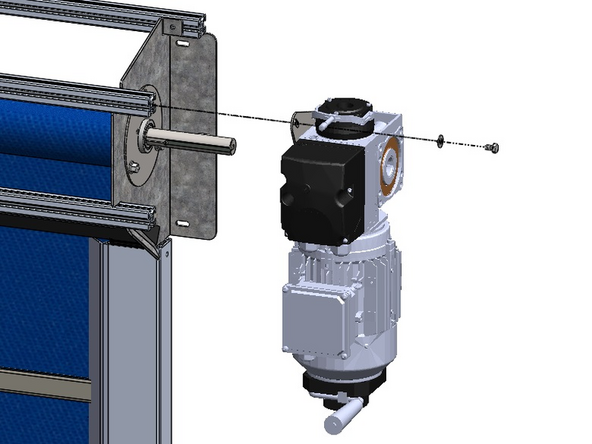

  7. Slide the Motor onto the Shaft and Key. Tilt the Motor to Align the Hole in the Motor Mount Bracket with the Hole on the end of the Upper, Front Rail. This should result in the Motor being oriented Vertically and Plumb (See Image 2).
    • Slide the Motor onto the Shaft and Key.

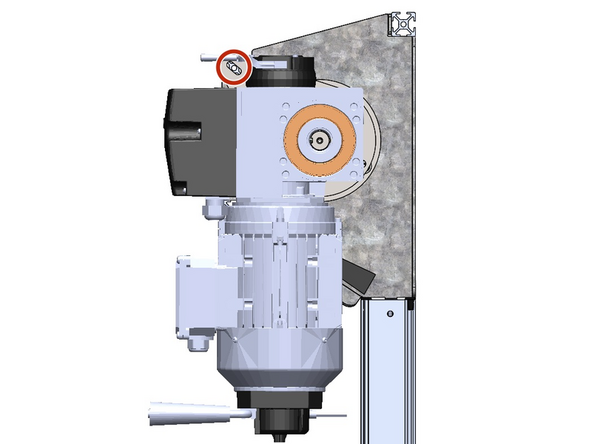

    • Tilt the Motor to Align the Hole in the Motor Mount Bracket with the Hole on the end of the Upper, Front Rail.

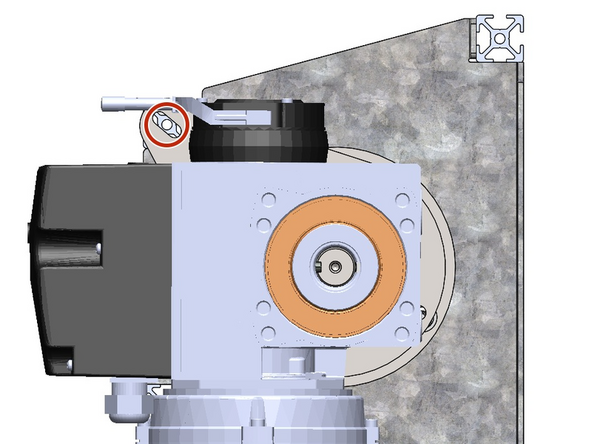

    • This should result in the Motor being oriented Vertically and Plumb (See Image 2).

    • Place the 5/16 Flat Washer onto the 5/16-18 x 1/2in Hex Bolt and Fasten the Motor to the Door with a Ratchet or Impact Driver.
