  1. Slide the bottom side of the vertical member into the cutout on the base with the vertical member oriented so that the holes are towards the bottom.
    • Slide the bottom side of the vertical member into the cutout on the base with the vertical member oriented so that the holes are towards the bottom.

    • Once oriented in place, slide the bolts through the holes of the vertical member and through the the holes of the base.

    • Tighten vertical member to the base by tightening the nuts to the bolts.

    • Repeat step for the second vertical member.

  2. Lay both vertical frame assemblies on the ground with the posts towards the bottom and facing each other.
    • Lay both vertical frame assemblies on the ground with the posts towards the bottom and facing each other.

    • Roughly space the vertical post assemblies apart to match the width of the opening.

  3. Slide the first end of the horizontal member between the tabs of the vertical post so that all the holes line up.

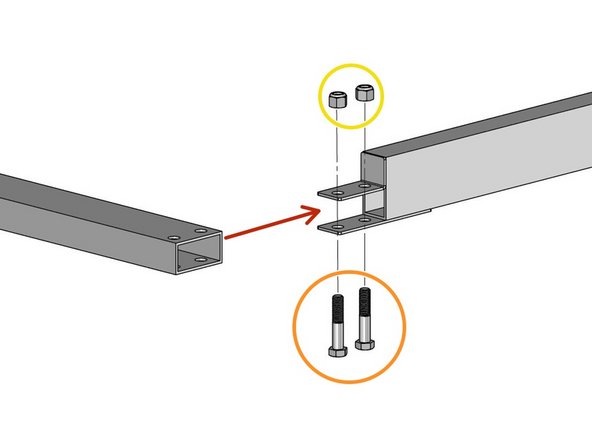

    • Slide the first end of the horizontal member between the tabs of the vertical post so that all the holes line up.

    • Gently lift up the assembly off the ground and slide the bolts through the tabs and the horizontal member

    • Tighten the horizontal beam to the vertical post assembly by tightening the nuts.

    • Repeat for the other side.

  4. Stand up the frame assembly and position where it will be fastened to the ground.

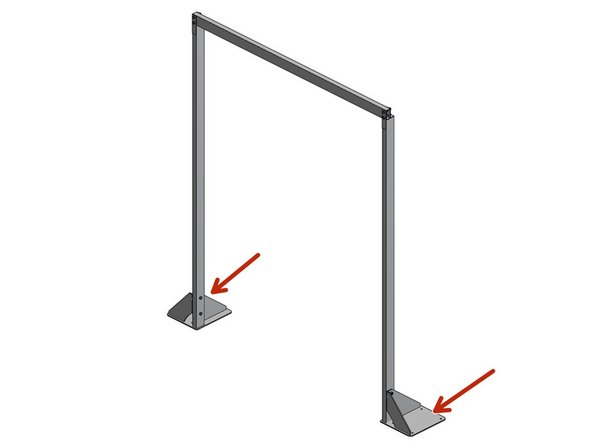

    • Stand up the frame assembly and position where it will be fastened to the ground.

    • Using customer supplied hardware and the pre-drilled holes in the base plates, mount the frame to the ground using best practices based on the floor material type.
