G2 1800 In-Jamb with Intube Motor Installation

Technical Support Contacts:

Phone: 262-746-3374

Email: techsupport@goffscw.com

Website: http://www.goffsenterprises.com

The Door Header must be level for the Door to operate properly.

Check the Header Opening for Level. Adjust the Installation accordingly.

Install Left and Right Header Brackets.

Use two people to raise the Header Roll into place.

Install Motor Pegs, Spacer and Clip on the Drive Side of Header.

Install the Locking Pin to secure the Idle Side of Header.

Install Left and Right Track Assemblies.

Install the Valance to Header Brackets.

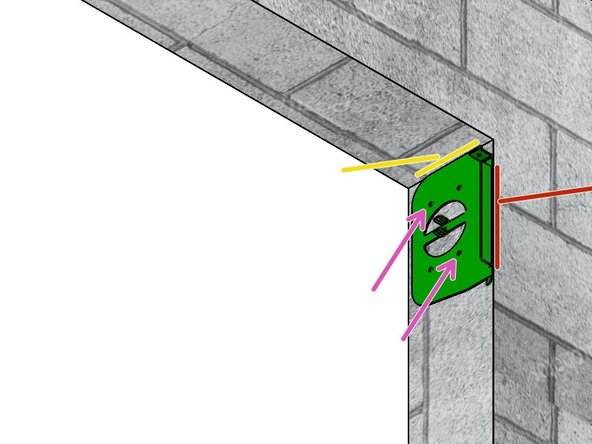

View shown from Back side of Opening

Use the L.H. Header Mounting Bracket

At the upper Left of the opening

Align the Flanged edge of the Bracket to the Back Surface of the Opening.

Align the Top edge of the Bracket to the Under side of the Opening Header.

Transfer (4) Mounting Hole locations to the Mounting Surface.

Prepare the Hole locations

Realign the Edges, then Install the bracket.

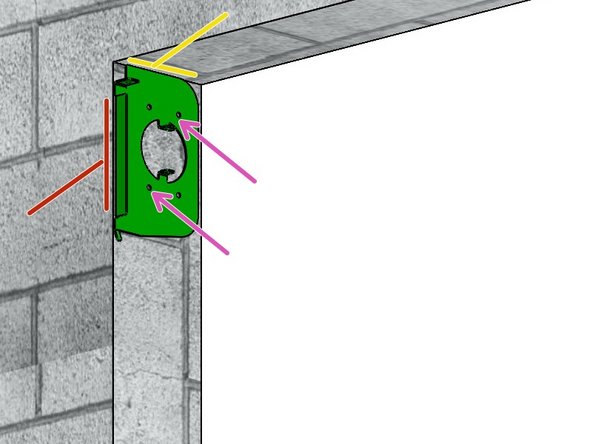

View shown from Back side of Opening

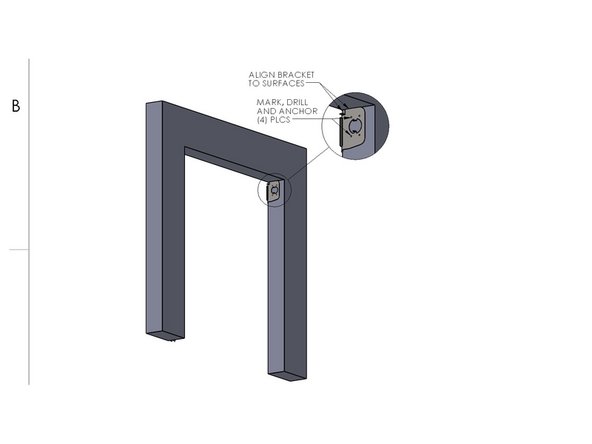

Use the R.H. Header Mounting Bracket

At the upper Right of the opening

Align the Flanged edge of the Bracket to the Back Surface of the Opening.

Align the Top edge of the Bracket to the Under side of the Opening Header.

Transfer (4) Mounting Hole locations to the Mounting Surface.

Prepare the Hole locations

Realign the Edges, then Install the bracket.

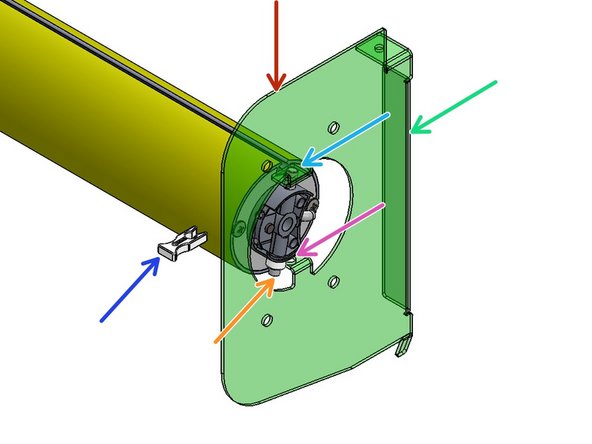

Raise the Header Assembly. Angle the Drive side towards the Header Bracket (it will be installed first), and angle the idle side away from the opening.

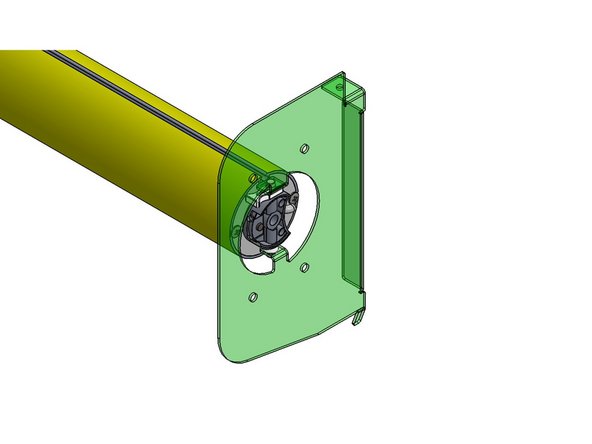

At the right side, insert the Upper Motor Peg fully into upper hole of R.H. Header Mounting Bracket.

Slip the plastic Ring onto Lower Motor Peg.

Insert the Lower Motor Peg into the

Lower hole on the Header Mounting Bracket.

Insert the plastic Clip onto the Upper Motor Peg to fill space between the Bracket and Motor.

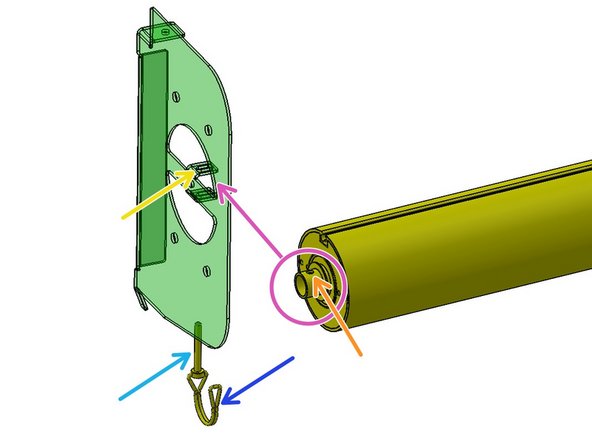

Pivot the Idle side of the Roll Assembly into the opening between the Mounting Bracket Tabs.

Align the hole in the Idle Shaft

with the slot in the Header Bracket.

Install Locking Pin through the Mounting Bracket and Shaft.

Secure the Pin in place with its Safety Latch.

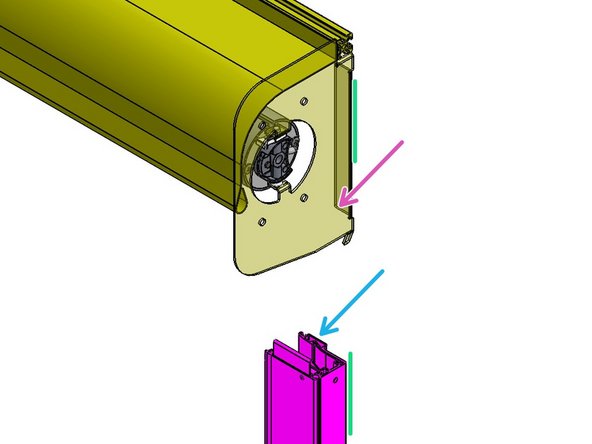

Align the Top surface of the Track to the

Bottom edge of the Header Mounting Bracket.

Move the Track against the Opening Sidewall.

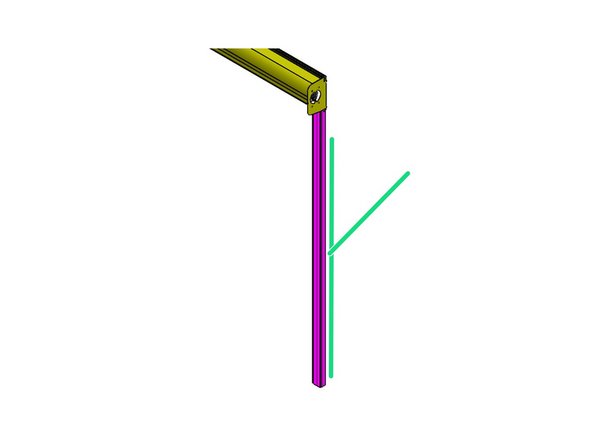

Installing the Track Assemblies is easiest with two people.

Plumb the Track Assembly Front to Back.

Trace the mounting holes on the wall to mark their pilot hole locations.

Move the track assembly off to the side and predrill its mounting holes.

Move it back into place and secure it to the wall with appropriate hardware.

Before fully tightening hardware, be sure to each track is plumb/vertical.

Repeat for the other Track Assembly.

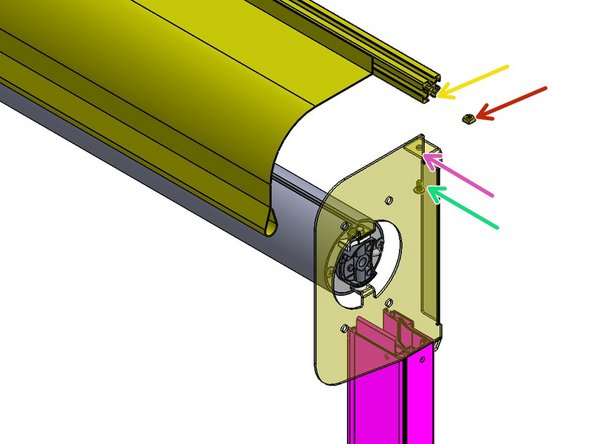

The Valance Assembly Mounts on top of the bent Flanges of the installed Header Mounting Brackets.

The Valance Beam has pre-installed Mounting Hardware.

Remove two Screws from the Valance Beam.

Leave the Nuts in the groove near the ends.

Lift the Beam into place on top of the Flanges.

With a Screwdriver, move the Nuts into place above the Mounting Flange holes.

Re-install the Screws through the hole in each Mounting Flange, then secure them in the captured Nuts.
