Clean Curtain Installation

Allow the Curtains to warm to room temperature (50 Deg. F) before unfolding them.

Clean Curtain Track System is corrosion resistant partitioning divider designed for wash-down and low contamination areas. It is manufactured from stainless steel, Delrin, and other materials exhibiting anti-microbial and anti-oxidation characteristics.

The Track System is modular and sectional in design. Pieces telescope together using stub splices that are sealed with BioSeal RTV Silicone to eliminate entrapment and contamination crevices and gaps.

Track sections and components cannot be cut or adjusted in the field.

Appropriate Installation Hardware, straps, threaded rods, clamps, turnbuckles, etc. will be supplied by the Installer.

To reduce sway and deflection of large, elaborate systems, crisscross/angled drop supports will be required.

The Installer is responsible for using best practices to install the Track system in the Facility.

Your kit will have all of the necessary Assembly Hardware, components, and a Track Layout Drawing for a complete Track and Curtain Assembly.

Unpack your systems carefully, and notify the factory if there are any shortages, or if any items have been damaged during transit.

Track systems are more easily assembled on the floor, and then raised in smaller sections for installation.

Apply a bead of BioSeal RTV Silicone (included) all the way around each telescoping joint before joining a wall Mount Bracket, Bridge Bracket, or Hanger Bracket, with the provided 1/4” hardware.

The RTV is a sealant which provides a hermetic seal, but it does not provide any form of structure, mechanical rigidity, or bonding.

All Bracket Types can be used for Securing Tracks Joints.

Lay the Track and Connectors in sequential order on the floor below the Installation Location.

Bridge Bracket - Bridge Brackets are used For Chain Suspension Mount Track Systems.

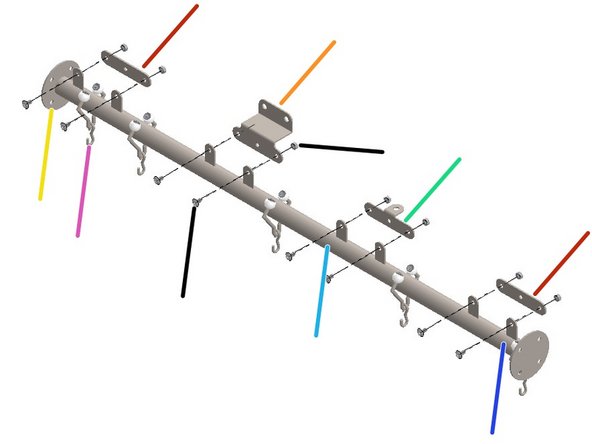

Hanger Bracket - Hanger Brackets are used for Rod Suspension Mount Track Systems.

Wall Mount Brackets are used for Face Mount Track Systems.

End Wall Mount Bracket - Male (Has Coupling Tube)

End Wall Mount Bracket - Female

Trolley - Before assembling the final End Mount Bracket, slide the Trolley Assemblies onto the Track.

Hardware Sets - Two 1/4” Screws and Nuts are included for each Joint Connection.

Track, Straight - Longer lengths have additional Hanger Tabs. * - Cannot be Field Cut. *

For Specific Connection instructions, see Steps following this Step.

Apply a bead of BioSeal RTV Silicone around each telescoping joint before assembling.

At one End of the Run, install RTV, an End Wall Mount Bracket and the First section of Track.

Install a Bridge Bracket with two sets of 1/4" Hardware to secure them.

Continue adding Track Sections, RTV, and Bridge Brackets at each Track Joint.

Install the Trolley Assemblies onto the Installed Track Sections. Ensure that the Hooks all face the same direction.

At the last Section of Track, assemble RTV, an End Wall Mount Bracket and two sets of 1/4" Hardware.

Assemble this to the End of the Run.

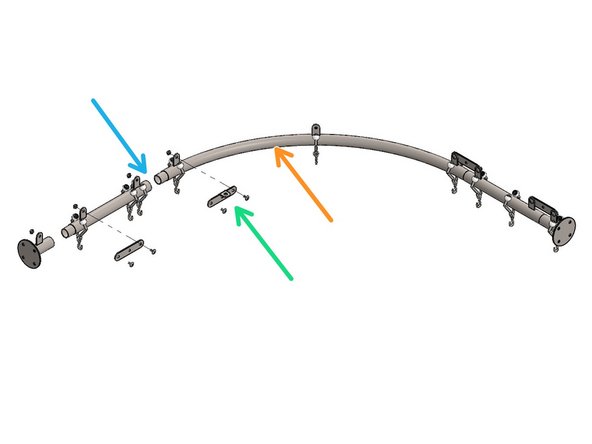

90 Degree Curved Track Sections require 24" in each direction. Straight Track Runs will be shortened by 24" to compensate for a 90 Degree Curved Track Section.

Follow Instructions for the Straight Track Sections.

Straight Track cannot be Field Cut.

Apply RTV, then Insert the end of the Straight Track into the end of the Curve Track.

Install a Connecting Bracket, Hanger Bracket or Wall Mount Bracket, with two Sets of1/4" Hardware to secure the two together.

Level and Mount the Curve Track.

Apply RTV, then Insert the next Section of Straight Track into the other end of the Curved Track, then Install a Bracket, with 1/4" Hardware.

Continue to follow the Straight Track Instructions (above).

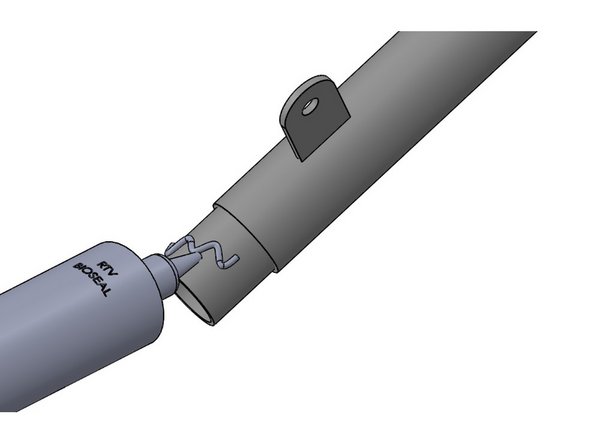

Apply a bead of BioSeal RTV Silicone around each telescoping joint before assembling.

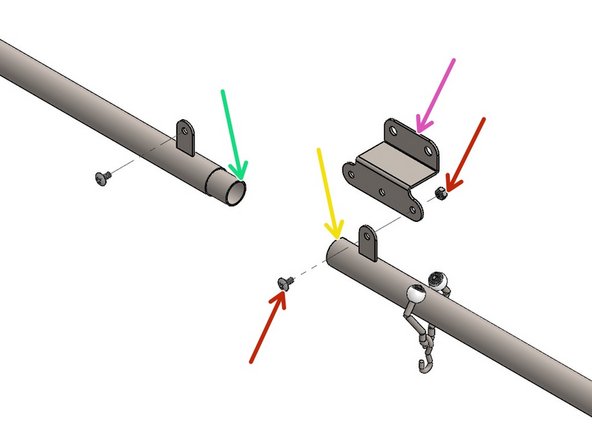

Insert the Male Coupling of a Straight Track Section into

the Female end of a Straight Track Section.

Fasten the Bracket through the Tabs on the Track

with two Sets of 1/4" Hardware.

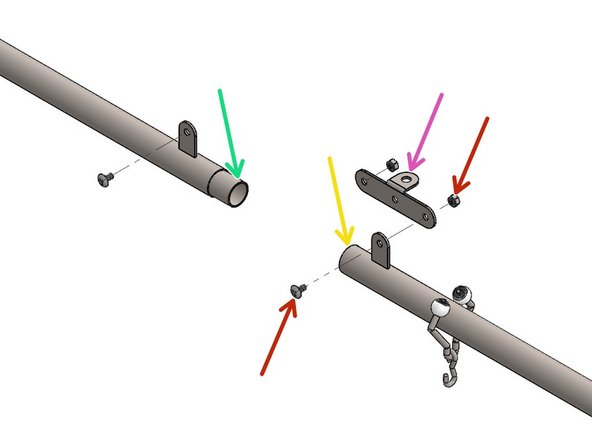

Insert the Male Coupling of a Straight Track Section into

the Female end of a Straight Track Section.

Fasten the Bracket through the Tabs on the Track

with two Sets of 1/4" Hardware.

Insert the Male Coupling of a Straight Track Section into

the Female end of a Straight Track Section.

Fasten the Bracket through the Tabs on the Track

with two Sets of 1/4" Hardware.

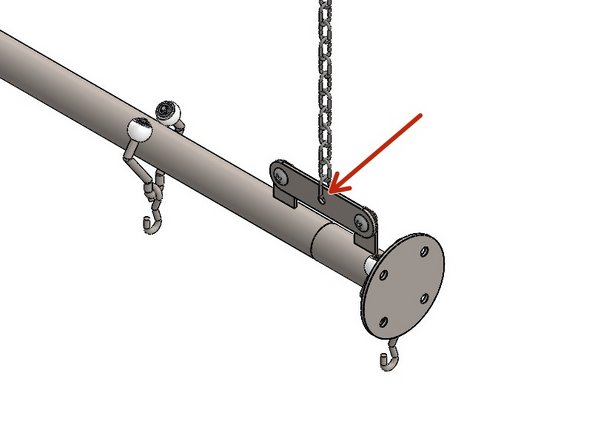

Bridge Brackets are used For Chain Suspension Mount Track Systems.

Level the Track.

Fasten through the Center Hole in the Connecting Bracket.

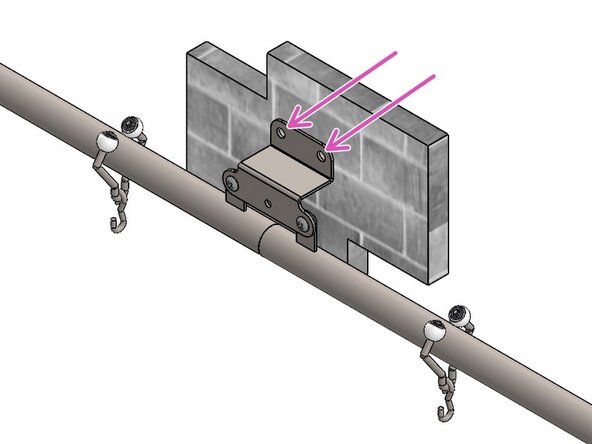

Wall Mount Brackets are used at Face Mount Track Systems.

Level the Track.

Fasten through the Holes in the Mounting Flange, and into the Mounting Surface.

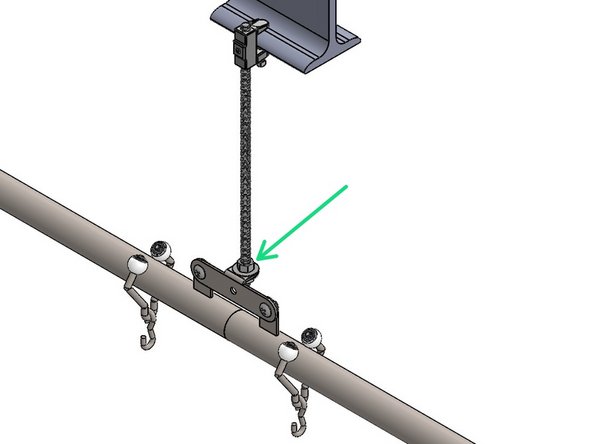

Hanger Brackets are used for Rod Suspension Mount Track Systems.

Level the Track.

Fasten through the Hole in the Connecting Bracket

When the Curtains have reached room temperature (50 Deg. F), unfold them on a clean surface.

Begin at one end inserting the grommets onto the hooks.

A single Curtain, and single layered sections, will use one Trolley for each Grommet.

For a Single Curtain arrangement, crimp the Trolley Hooks closed after the Grommets are installed on the Hooks.

For a Multiple Curtain arrangement, Crimp all But the Last 2 Roller Hooks of the 1st Curtain.

The 2nd Curtain (and consecutive Curtains) will share the last two Trollies of the 1st/Previous Curtain.

Continue Hooking, overlapping and Crimping the Trollies until the Curtain Run is complete.
